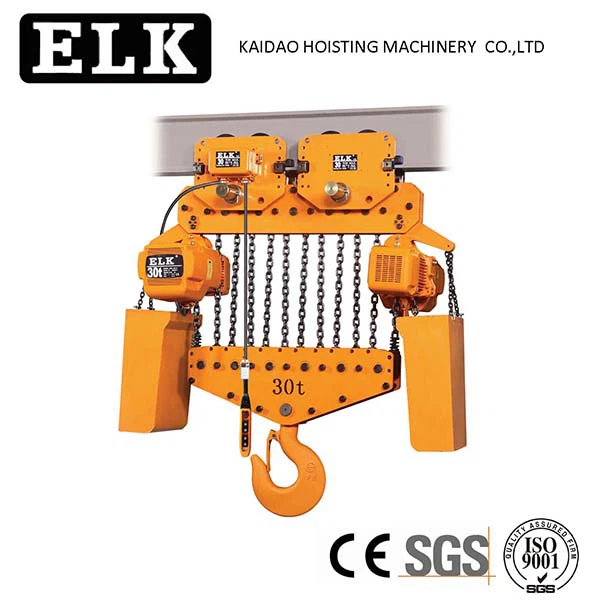

Electric Chain Hoist Safety

electric chain hoist safety,electric chain hoist is a new kind of product we developed recently.It has such characteristics as fast lifting speed,convenient operation and beautiful appearance.

Send InquiryChat Now
Product Details

Especially,its unique overloading safety protection setting and electrical machine hot protection setting make sure of the higher reliability of this product.It is widely used in lifting light and small goods.It can also be used in low-level space materials circulation system by mating with aerial travelling crane equipment.This product attests to be effective equipment which can improve working condition and enhance labor efficiency,Optional wireless remote controller.


electric  chain hoist safety

1.Product Introduction of electric  chain hoist safety

This electric chain hoist has Japan FEC80 ultra heat-treated steel alloy chain and side magnetic braking device,which can offer the instant brake.

2.Product parameter of electric  chain hoist safety

Type

Capacity
     (Ton)

Standard
     Lifting
 Height(m)

Lifting
 Speed
 (m/min)

Lifting Motor

Power

Rotation
   Speed
  (r/min)

Phase

Voltage
     (V)

Frequency
     (Hz/s)

HKD00501S

0.5

3

6.8

0.75

1440

3

200-600

50

HKD0101S

1

3

6.6

1.5

1440

3

200-600

50

HKD0102S

1

3

3.4

0.75

1440

3

200-600

50

HKD01501S

1.5

3

8.8

3.0

1440

3

200-600

50

HKD0201S

2

3

6.6

3.0

1440

3

200-600

50

HKD0202S

2

3

3.3

1.5

1440

3

200-600

50

HKD02501S

2.5

3

5.4

3.0

1440

3

200-600

50

HKD0301S

3

3

5.4

3.0

1440

3

200-600

50

HKD0302S

3

3

4.4

3.0

1440

3

200-600

50

HKD0303S

3

3

2.2

1.5

1440

3

200-600

50

HKD0502S

5

3

2.7

3.0

1440

3

200-600

50

3.Product feature and application

electric  chain hoist safety1591.jpg



It is made of light aluminum shell, light but hard. The cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to place like chemical plant and electroplate factory.



electric  chain hoist safety1866.jpg


They are made by hot forging and heat treatment.

Advantages:meets the demands on strength amd hardness,durable and strong,not easy to break

and wear.360 degrees rotation and safety ensure the operation safety.




electric  chain hoist safety2079.jpg



Temperature range: Reliable operation from -20℃ to +40℃ without any reduction in the duty factor.





4.Product Qualification of the electric chain hoist

electric  chain hoist safety2232.jpg





Kaidao has the technology department, the sales department, the after sale department and the production department,each department works well together.




electric  chain hoist safety2387.jpg


Kaidao factory has CNC workshop,has the ability to produce all parts of the electric chain hoist and finish the workpiece.





electric  chain hoist safety2511.jpg



Kaidao has reliable packing,the standard export plywood case can protect the product very well.




1.What’s your product range?

Hoist: electric chain hoist , electric wire rope hoist

2.When Can I get the quotation?

We usually quote within 24 hours after we get your inquiry .If you are very urgent to get the price , please send email to info@kaidaohoist.com
