1-10ton High Performance Wire Rope Electric Hoist

1-10ton High Performance Wire Rope Electric Hoist

Main structure of 1-10ton high performance wire rope electric hoist: Reducer, hoist motor, running motor, firearm break, cable sliding line, reel device, hook device, coupling, soft cable current introducer and so on set power and braking power in one. 1-10ton high performance wire rope electric...

Send InquiryChat Now
Product Details

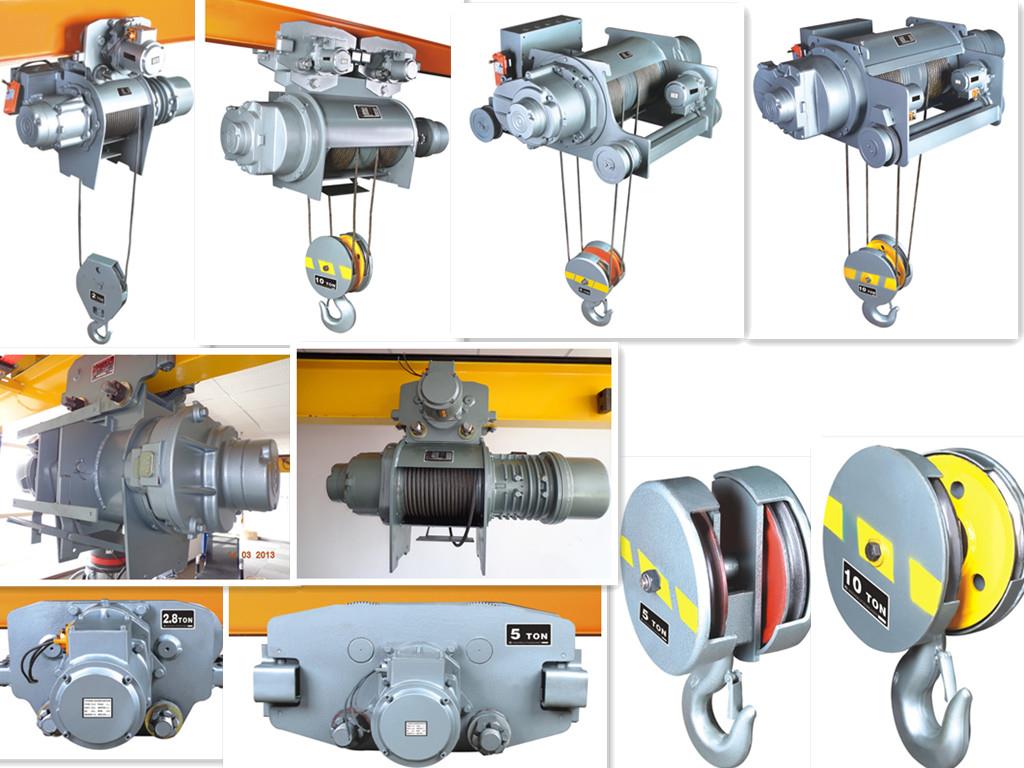

③.ELK Type 3rd. Wire Rope Hoist

Main structure of 1-10ton high performance wire rope electric hoist:

Reducer, hoist motor, running motor, firearm break, cable sliding line, reel device, hook device, coupling, soft cable current introducer and so on set power and braking power in one.

1-10ton high performance wire rope electric hoist installation and use:

1-10ton high performance wire rope electric hoist single-beam crane, bridge crane, gantry crane, hanging crane. With transformation, it can also be used as winch. Therefore, it is to improve the efficiency of labor, improve the working conditions of the necessary machinery.

Operating conditions of 1-10ton high performance wire rope electric hoist:

Ambient temperature: - 20 ℃ ~ + 40 ℃

Heavy duty working system M4 1-10ton high performance wire rope electric hoist is used in heavy work, load often in the rating value or high safety factor requirements. 1-10ton wire rope electric hoist structure reducer: three-stage fixed shaft helical gear rotating mechanism, gear and gear shaft are made of heat-treated alloy steel, box body, box cover is made of high-quality cast iron, assembly is strict, sealing is good.Reducer into a component, loading and unloading is very convenient.

Control box: adopt the device that can cut off the main circuit in case of emergency and has up and down stroke protection cut-off limit of fire.Ensure the safe operation of electric hoist. Electrical components long life, reliable use.

Wire rope: gb1102-74 (6*37+1) X type lifting wire rope is adopted to ensure durability.

Conical line motor: the lifting motor adopts the conical rotor braking asynchronous motor with larger starting torque, and no additional brake is needed. The load duration of the motor is 25%, the motor is insulated with class B or class F, and the motor protection grade is IP44/IP54.

Button switch: manual operation is light and convenient, there are two ways of rope control and wireless remote control.

光影魔术手拼图86
